带2个风速计和1个风向标的WindLogger风速记录器

Added 添加到购物车

Despatched in 12-15 working days

This product will be despatched within 10-15 working days
---- QUESTIONS AND ANSWERS ----

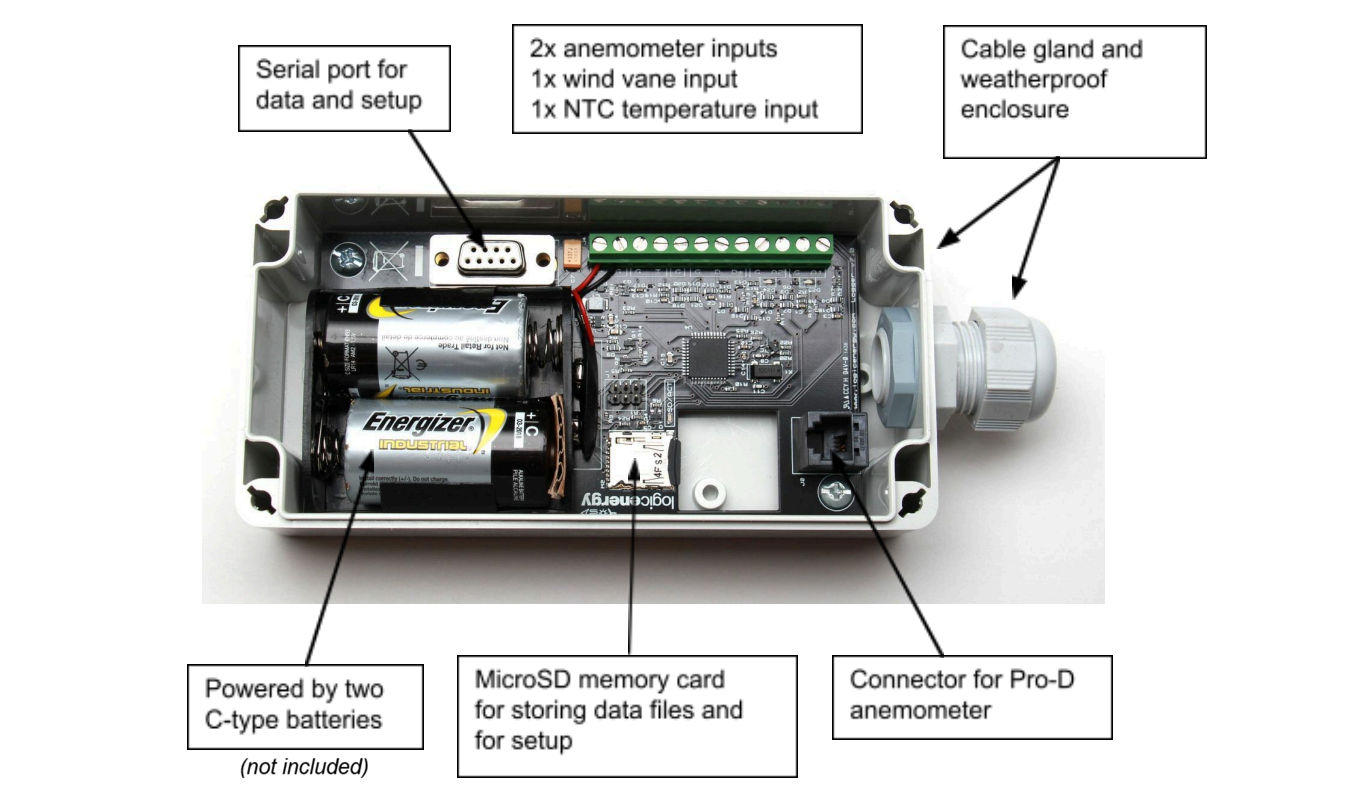

该设备使用新型的WindLogger风速记录器,拥有2个能够同时记录数据的风速计输入接口,因此,您将可以在两个不同高度上监测风速。

该设备的用途?主要用于计算风切变,更常见的用途是推断处于较高位置的风速。例如,您的测风塔只有18米高,但是您需要了解23米处的风速。您可以把风速计连接至最高的18米处,然后把另一个风速计连接在12米处。得到这两个值后,您将可以在不需要进行实际测量的情况下推断出23米处的风速。请谨记,我们不建议用这种方法推断比最高的测量点高出2/3的位置的数据。

该设备以入门级的价格提供了专业风速监测系统所具备的所有关键功能。整套设备包括:

 • 新型 LeWL WindLogger风速记录器 • 1个带风向标的组合式风速计以及13米的电缆和测风塔支撑配件 • 1个涡流风速计及10米长的传感器电缆 • 快速安装指南 • 工业级电池和工业级microSD卡。如果您需要了解更多关于新型WindLogger风速记录器和传感器的技术规格说明,请访问上方的链接。对于一般性的常见问题,请点击这里。

Customer Reviews

Based on 9 reviews
100%
(9)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
R
Robert Holl
Review left on the WindLooger with Anemometer & Wind Direction product, by Robert Holl, “Monitori...

The wind gauge is working very well. Our trainees built a 10-meter-high steel tower, and the measuring equipment has been hanging there and operating reliably for a year. The measurements provided us with the information we needed. We are now changing the battery for the first time after a year, which is also great.

B
Bram Peirs
Review left on the WindLogger product, by Bram Peirs, "From Waste To Wind"

We purchased Lewl Windlogger for our projects after technical support professionally explained what the error margin of the standard anemometer is compared to a calibrated one. We are happy with the product and want to order more units.

B
Beat Hofer
Review left on the WindLogger product, by Beat Hofer, "Monitoring wind in Switzerland"

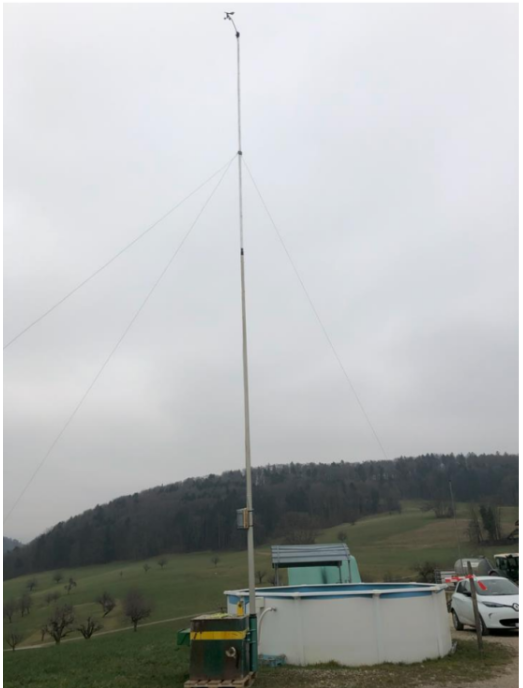

The wind logger is installed near a cow barn, where I rented the roof, to put a 152 kWp PV-plant. Thus, it would be easy to connect a future wind generator with the electricity grid. To see if the wind is good enough to put a small wind turbine generator system in this area. I am loggin the wind for one year started in February 2023. Then I’ll decide to ask the local authority for permission. I installed the wind logger on a 12-meter pole. Looks like the wind speed in this area of Switzerland is not very promising. Although during winter wind is normally stronger, hence having windlogger is great decision.

B
Beat Hofer
Review left on the WindLogger product, by Beat Hofer, "thanks a lot for your commitment!"

The set up of the wind logger was easy and worked from beginning as promised. My problem to import the CSV file in Excel, was quickly solved by the Windlogger team.

F
Franko Arenas Díaz
Review left on the WindLogger product, by Franko Arenas Díaz, "Atacama Desert"

Studying the aerosol/particulate material deposition for Atacama Desert, we set a west-east transect of dust traps starting close to the Pacific Ocean until the Andes Cordillera. To study the atmospheric deposition and its temporal-spatial dynamics we purchased 3 wind trackers close to the dust traps so we analyse the wind speed and direction. Excellent customer support with our first international purchase out of Chile.

Customer Questions

Ask Question
0
Q: What is the closest interval this logger can record?

A: 10 seconds, we recommend this setup only for short periods of time as it generates a lot of data and consumes much more battery. The other options are 1 minute and 10 minutes recording. The sampling rate is discrete.

1
2
Q: We need to get longer cables since our installation will be on an existing 22m pole. Do you have longer cables available within this set, i.e. 25m (including reserve)? Thanks and best regards!

A: The standard cable is 13m long. We don't usually recommend extending the cable as it can be an entry point for water ingress if it has not been terminated right.
